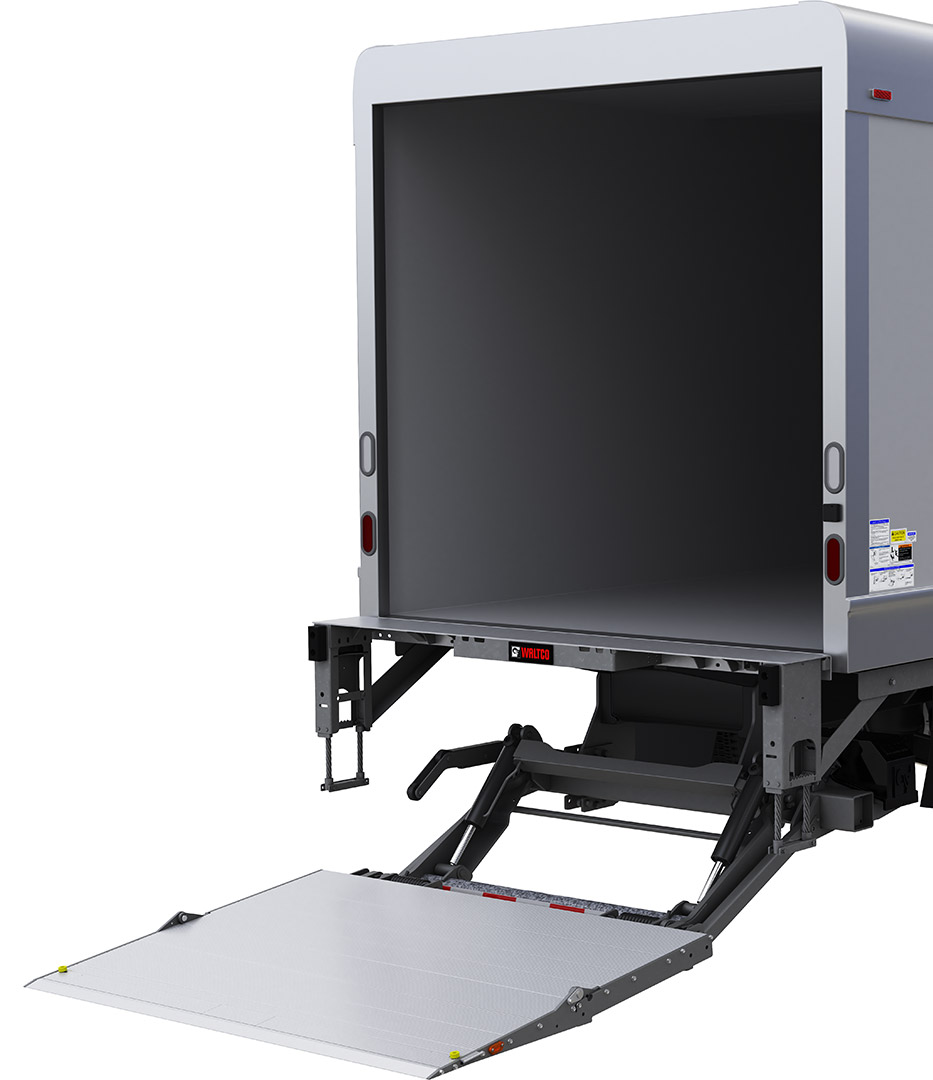

WALTCO HLF Liftgate

HLF is a versatile design that offers maximum convenience, performance and flexibility. The two-section, lightweight loading platform can be folded and stored beneath the vehicle floor, enabling easy access to the cargo area without activating the lift. The liftgate is welded to the frame of the vehicle chassis to ensure optimum safety.

  West: (602) 722-0590  East: (410) 984-7715

Fleet Solutions & Uptime Support for Specialized Transportation Companies

Fleet Solutions & Uptime Support for Specialized Transportation Companies

WALTCO HLF Liftgate

HLF is a versatile design that offers maximum convenience, performance and flexibility. The two-section, lightweight loading platform can be folded and stored beneath the vehicle floor, enabling easy access to the cargo area without activating the lift. The liftgate is welded to the frame of the vehicle chassis to ensure optimum safety.

West: (602) 722-0590

East: (410) 984-7715

FIND A LOCATION

Features

Safety

  • Knurled aluminum platform surface
  • Hydraulic lock valve

Performance

  • Torsion-assist platform extension
  • Power down
  • Faster operating speeds
  • One or two-step fixed dock bumpers

Maintenance

  • Easy access pump
  • Grease fittings at all major hinge points
  • Dedicated ground wire

Installation

  • Bolt-on bed extension
  • Grease fittings at all major hinge points

Materials

  • Steel substructure
  • Galvanized finish
  • Aluminum platforms
  • Heat treated pins

Specs

  • Platform width: 84″
  • Platform depth: 60″
  • Lifting capacity: 2,500 lb., 3,000 lb., 4,000 lb., and 5,000 lb.
  • Bed height: Min 46″ to Max 6
  • Platform: Aluminum
  • Ramp: Wedge
  • Weight of complete lift: 1,114 to 1,352 lbs.
