Features
- Engineered for Life: ShuttleAIRE leverages Thermo King’s long history of transport refrigeration and HVAC, resulting in the most reliable HVAC system available for shuttle applications. Each system is engineered and tested to last a minimum of 5 years or 400,000 miles with standard maintenance (see your dealer for warranty details).
- Efficiency: Every component has been selected to provide the highest level of system efficiency to maximize passenger comfort. Proper component selection and sizing decreases engine load for maximum fuel savings; Thermostatic Expansion Valves (TXV) precisely regulate refrigerant flow for highest efficiency, providing more capacity when needed vs. block valves or orifice tubes; Oversized condensers ensure proper cooling in extreme climates; Properly-sized fans give maximum cooling capacity with lower power consumption.
- Safety: Each ShuttleAIRE product has been developed with the highest regard for safety. From standard centralized fusing and power distribution to the structural integrity of the unit, ShuttleAIRE systems have you covered.
Features
- Engineered for Life: ShuttleAIRE leverages Thermo King’s long history of transport refrigeration and HVAC, resulting in the most reliable HVAC system available for shuttle applications. Each system is engineered and tested to last a minimum of 5 years or 400,000 miles with standard maintenance (see your dealer for warranty details).
- Efficiency: Every component has been selected to provide the highest level of system efficiency to maximize passenger comfort. Proper component selection and sizing decreases engine load for maximum fuel savings; Thermostatic Expansion Valves (TXV) precisely regulate refrigerant flow for highest efficiency, providing more capacity when needed vs. block valves or orifice tubes; Oversized condensers ensure proper cooling in extreme climates; Properly-sized fans give maximum cooling capacity with lower power consumption.
- Safety: Each ShuttleAIRE product has been developed with the highest regard for safety. From standard centralized fusing and power distribution to the structural integrity of the unit, ShuttleAIRE systems have you covered.
Specifications
- IMACA Btu/hr (estimated): 82,000
- Engine Idle Capacity (ASHRE)* BTU/hr / kW: 29,080 / 8.5
- Maximum Capacity (ASHRE)* BTU/hr / kW: 32,440 / 9.5
- Heating Capacity BTU/hr / kW: 63,000 / 18.5
- Evaporator Airflow ft3/ min (CFM) / m3/hr: 1,050
- Amperage Requirements 12 VDC: 85
- Recommended Compressor: TM-31 or TM-21
- Refrigerant: R134a
Weight
- Condenser (Rooftop): 73
- Condenser (Skirt): 51
- Evaporator Cool Only: 92
- Evaporator Cool/Heat: 100
Dimensions

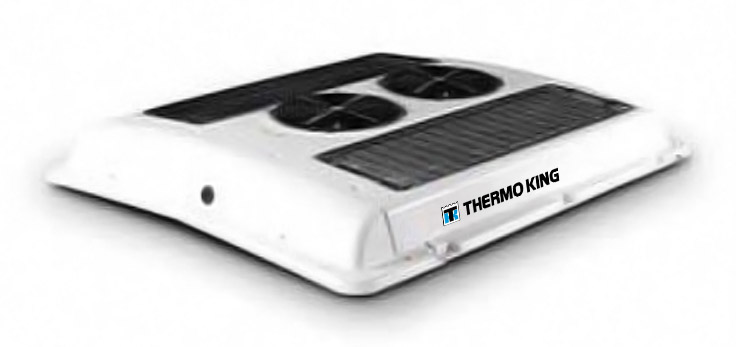

- Rooftop Condenser (L x W x H): 55 x 47 x 6
- Skirt Condenser: 50 x 14 x 10
- Evaporator: 61 x 24 x 9
Specs
Capacities
- Cooling Capacity: 82,000 BTU/hr
- Heating Capacity: 63,000 BTU/hr (18.5 kW)
Airflow
- Airflow Volume: 1,050 cfm
General
- Weight: Condenser (Rooftop): 73 lb.; Condenser (Skirt): 40 lb.; Evaporator Cool Only: 44 lb.; Evaporator Cool/Heat: 48 lb.
- Dimensions: Rooftop Condenser: 55 x 47 x 6 in.; Skirt Condenser: 50 x 14 x 10 in.; Evaporator: 61 x 24 x 9 in.
Specifications
- IMACA Btu/hr (estimated): 82,000
- Engine Idle Capacity (ASHRE)* BTU/hr / kW: 29,080 / 8.5
- Maximum Capacity (ASHRE)* BTU/hr / kW: 32,440 / 9.5
- Heating Capacity BTU/hr / kW: 63,000 / 18.5
- Evaporator Airflow ft3/ min (CFM) / m3/hr: 1,050
- Amperage Requirements 12 VDC: 85
- Recommended Compressor: TM-31 or TM-21
- Refrigerant: R134a
Weight
- Condenser (Rooftop): 73
- Condenser (Skirt): 51
- Evaporator Cool Only: 92
- Evaporator Cool/Heat: 100
Dimensions
- Rooftop Condenser (L x W x H): 55 x 47 x 6
- Skirt Condenser: 50 x 14 x 10
- Evaporator: 61 x 24 x 9
Specs
Capacities
- Cooling Capacity: 82,000 BTU/hr
- Heating Capacity: 63,000 BTU/hr (18.5 kW)
Airflow
- Airflow Volume: 1,050 cfm
General
- Weight: Condenser (Rooftop): 73 lb.; Condenser (Skirt): 40 lb.; Evaporator Cool Only: 44 lb.; Evaporator Cool/Heat: 48 lb.
- Dimensions: Rooftop Condenser: 55 x 47 x 6 in.; Skirt Condenser: 50 x 14 x 10 in.; Evaporator: 61 x 24 x 9 in.
